AR Photoniccs is the industry leader when it comes to the efficient and portable surgical laser diodes. AR Photoniccs comes with a reputation of providing a long-lasting and high-quality product of European standards. The equipment comes with high precision and advanced technology support from best suppliers across the globe.

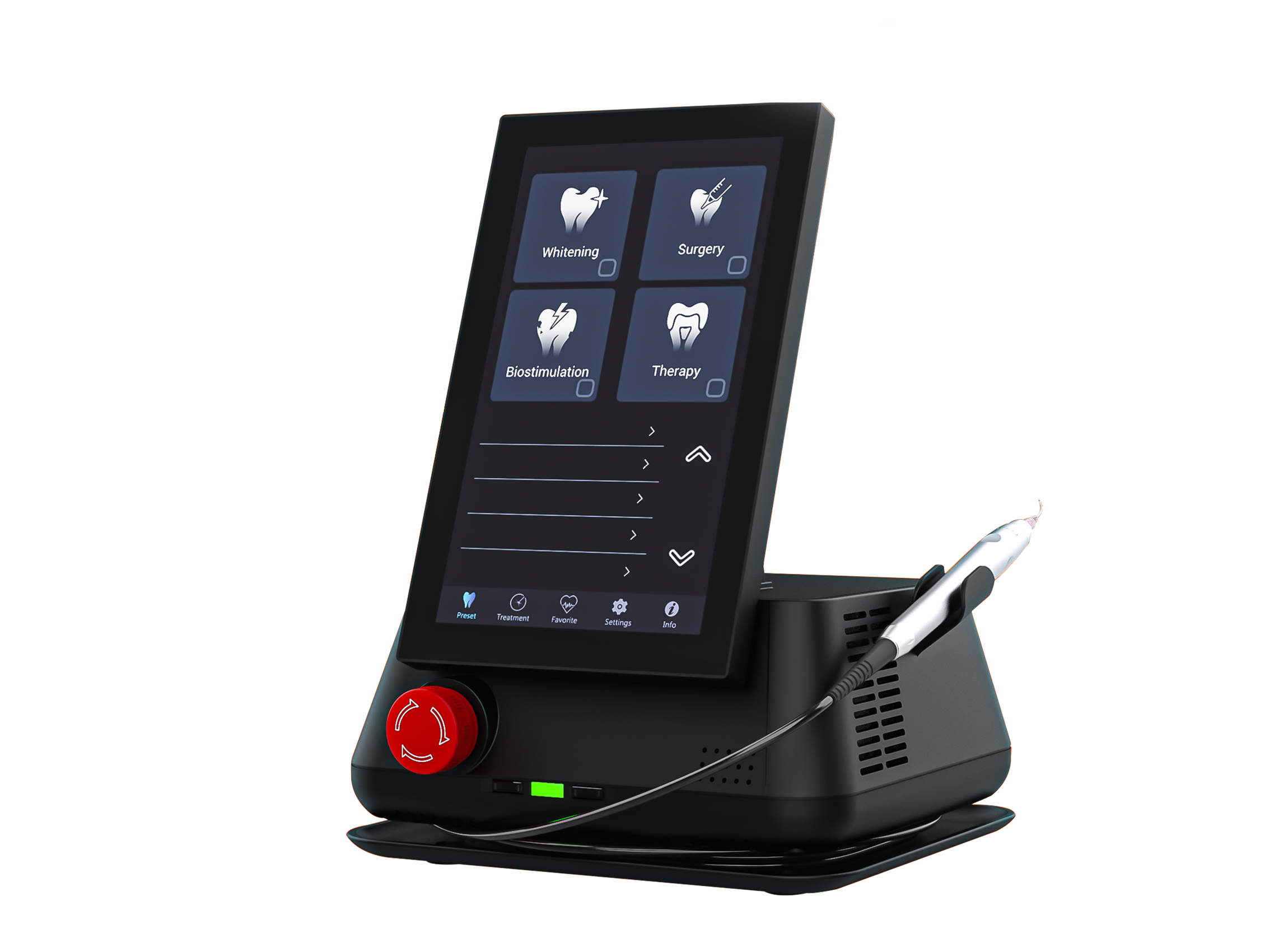

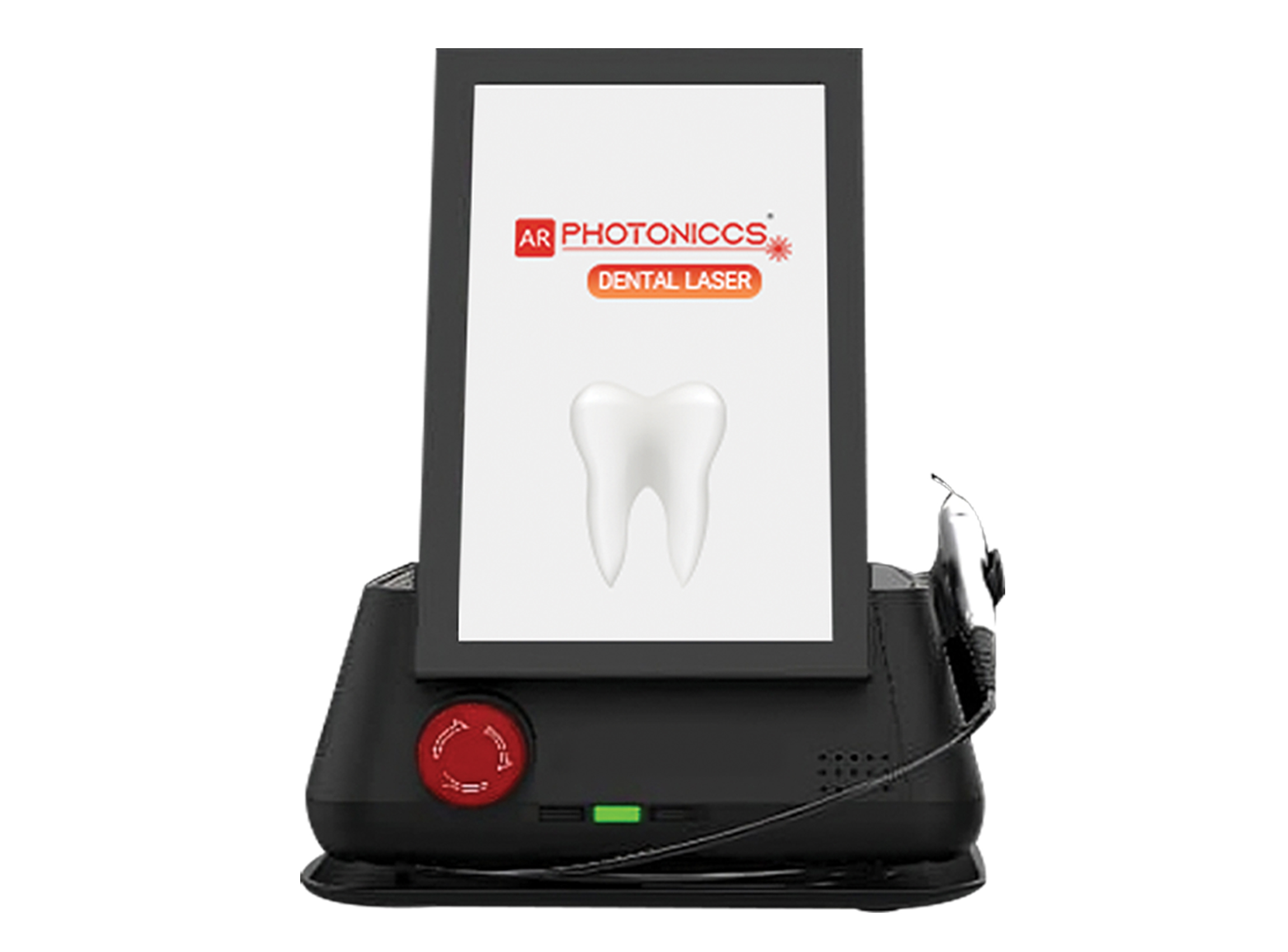

| Model Name | Pulse- Dental |
| Laser Type | Diode, Semiconductor |
| Wavelength | 980nm |
| Max Power | 10 watts |
| Aiming Beam | 650nm, 5mw |
| Operation Mode | Continuous or pulsed |
| Pulsed Time | 0.01ms-3S |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22~0.48 |
| Beam Emission | Footswitch |
| Controller | Microprocessor |
| Display | 7 Inch with touch panel Medical approved |
| Laser Mode | Gala Diode Laser |
| Cooling | Silent cooling fan, Multi- channel copper tube electronic cooling |
| Power supply of the laser | DC 15V/4.0A from the separate AC |
| Safety | Medical Grade |
| Power supply of AC adapter | 100~240VA,50/60hz |
| AC Adapter | 15V /4.0A |
| Laser Dimensions | 170mm(w)*180(L)*250(H)mm |
| Laser weight | 2 kg |
| Environmental conditions during work | From +5 to 30°C degree, relative humidity from 20% up to 90% |
| Class of Medical Device | IIB |
| Laser safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | Ip20b |
| Footswitch Protection Degree | IPX6 |
| Battery Capacity | 3000mAh |
