Under the low frequency electric field of 100kHz, a plasma thin layer with a thickness of about 100 µm is formed around the electrode by normal saline. The plasma thin layer is composed of high-energy ions. These particles have enough kinetic energy to break the organic molecular bonds of the target tissue and make it vaporized and cracked into gas.
The low-temperature plasma technology of ECO can realize the functions of tissue cutting, ablation and coagulation at a low temperature of 40-70°C, which can effectively avoid the defects of high temperature, deep damage, large amount of bleeding, and negative plate sticking.
Download Catalog Inquire Now
We are here to help.
| Product contains | Proctoscope with Obturator, Fibre optic light candle, CD containing Instruction of Use |
| Proctoscope Material | Polycarbonate- Hard Plastic |
| Proctoscope Diameter | Inner= 3.8 cm. Outer= 4 m |
| Proctoscope Window Dimensions | Length 15 cm. Width= 3.5 cm |
| Obturator Diameter | 3.6 cm |
| Sterlization methods | Ethylene oxide (EtO) / Formalin chamber /CIDEX |
| Imput Voltage | 100-240V, 50/60Hz |
| Working Frequency | 100KHz ± 10% |
| Output Power | Ablation cutting ≤ 350W Coagulation ≤ 150W |

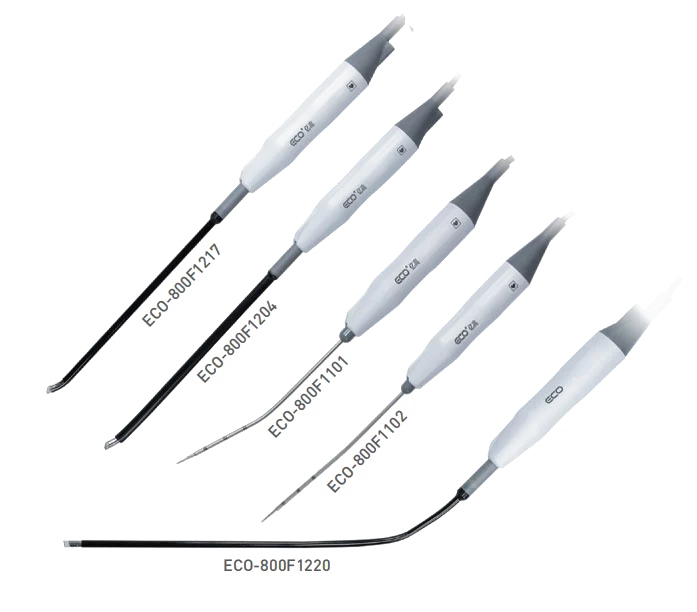

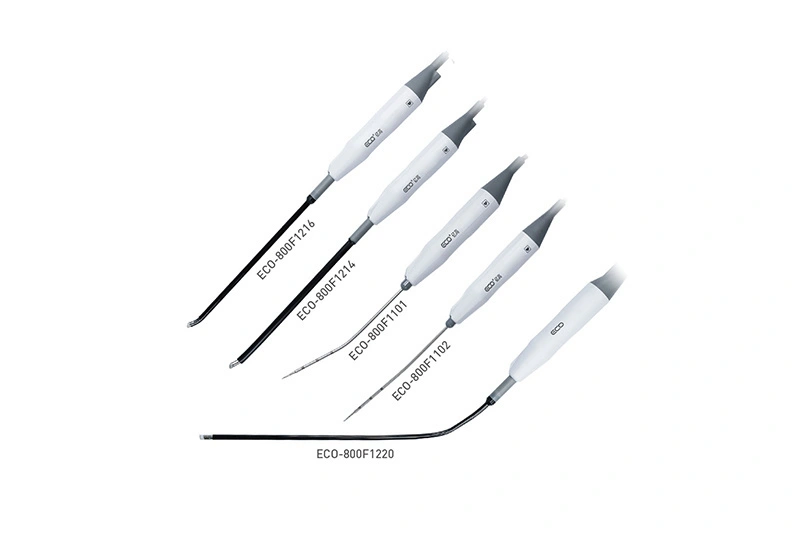

| Model No. | Clinical Use |
|---|---|
| ECO-800F1101 | Turbinate ablation |
| ECO-800F1102 | Turbinate ablation |
| ECO-800F1208 | Tonsillectomy,Adenoidectomy |
| FCO-800F1201 | Tonsillectomy, Adenoidectomy |
| ECO-800F1220 | Laryngeal lesion ablation |
