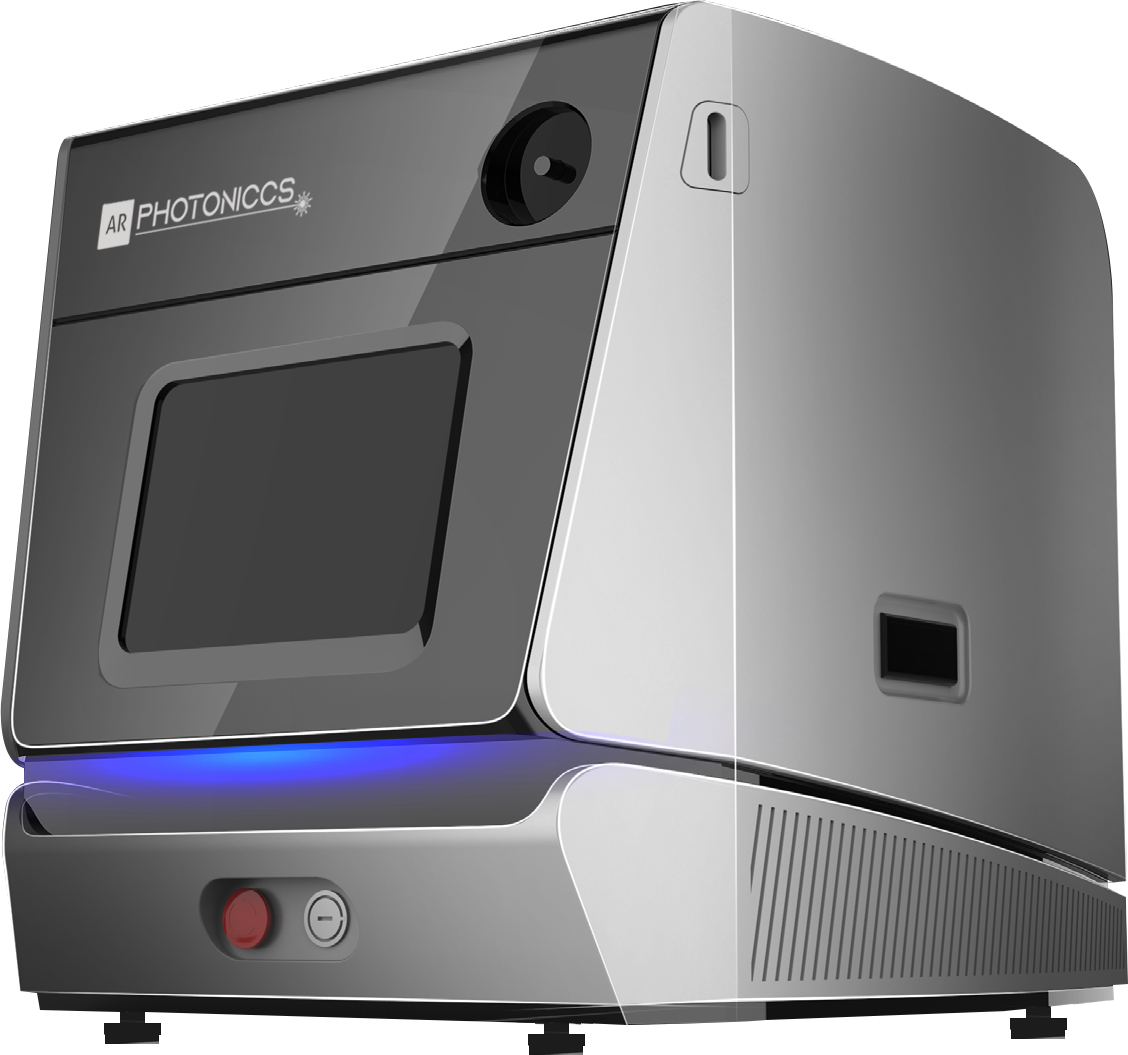

AR Photoniccs series surgical laser is a desktop device based on Holmium (Ho:YAG) laser with emission at 2100 nm wavelength. This wavelength is highly absorbed by water and biological tissue providing excellent cutting, ablation and hemostatic properties. The limited radiation penetration (0.3–0.4 mm) results in minimal damages to surrounding tissue.
The Potent XP series surgical laser automatically adjusts the emission settings based on fiber diameter and selected mode.
Download Catalog Inquire Now
We are here to help.
| Output Power(Max.) | 30 Watts | 40 Watts |
|---|---|---|
| Pulse Frequency | 0.1–4.0 J | 0.1–6.0 J |
| Pulse Energy | 0.5–4.0 J | 0.1–4.0 J |
| Laser Type | Holmium laser (Ho:YAG) | |
| Wavelength | 2.1 μm | |
| Pulse Duration | 50–1500 μs (Long, Medium and Short pulse modes) | |
| Aiming Beam | Green 532 nm, <1mW, can be fine-tuned | |
| Cooling System | Internal cooling system | |
| Main Supply | AC 110V±10%, 220V±22V / 50Hz±1Hz | |
| Fiber length | 3M | |
| Weight | 14 Kg | |
| Holmium laser fiber | 200 μm, 275 μm, 365 μm, 550 μm, 800 μm, 1000 μm | |
| Numerical aperture (NA) | 0.12, 0.20, 0.22 ± 0.02 | 0.28 ± 0.02 or customised | |
| Operating temperature | -190° to +350°C | |
| Core diameter | Available from 25 μm to 2000 μm | |
| Standard core/cladding ratios | 1: 1,041 1,06 | 1: 1,11: 1,15 1: 1,2 1: 1,25 | 1: 1,4 or customised | |
| Standard prooftest | 100 kpsi (nylon, ETFE, acrylate cladding) | 70 kpsi (polyimide cladding) | |
| Minimum bending radius | 50 x cladding diameter (short term mechanical stress) 150x cladding diameter (during use with high laser power) | |
Calculi in the bladder, ureter or kidney are fragmented by rapid evaporation of residual water inside the stone upon absorption of the laser radiation. At the long pulse setting the ARPhotoniccs Holmium laser does not apply external kinetic force, thus preve nting the calculi from being pushed further inside the ureter.
The ARPhotoniccs Flexible reusable laser fiber insertion sheath provides protection of the flexible scope against damage during insertion of the laser fiber. Please refer to our laser fiber brochure.
ARPhotoniccs Holmium lasers offer different treatment mo dalities for BPH. Depending on the surgical situation and the delivery system used the adenoma may be resected, enucleated (HOLEP) or ablated (HoLAP). All treatment modalities benefit from the excellent haemostatic properties of the ARPhotoniccs Holmium laser which is provided by the long pulse duration in the tissue mode. The patient benefits from the bloodless laser treatment,early catheter removal, immediate symptomatic im provement, better urinary flow and a shorter hospital stay.Res ected tissue is available for subsequent biopsy.
Strictures in the ureter and the urethra are easily opened-virtually without any bleeding
Tumer Warwick incisions are quick and easy. Excellent vision is provided during the entirely bloodless procedure.
The low penetration of the ARPhotoniccs Holmium laser makes it the ideal instrument for the treatment of bladder tumours. A special aiming beam setting allows the usage together with photo-dynamic-diagnosis under blue light illumination.
Condylomata are precisely ablated by the ARPhotoniccs Holmium laser. The superficial tissue effect excises the tissue to the desired depth providing excellent haemostasis. Shallow necrosis enables immediate healing.
ARPhotoniccs Holmium laser offers a variety of treatment options for cervical and lower back pain patients. The ARPhotoniccs Holmium laser ablates soft tissue such as disk material and hard tissue such as bone and osteophytes in Laser Foraminoplasty. In Laser Discectomy it removes residual nucleus pulposus mat erial in preparation for stabilisations and fusions. The thermal load to the surrounding tissue is controlled by the shallow penetration of the Holmium laser radiation and the adjustable pulse duration.
Stenosis of the nose is treated by trimming of turbinates and the nasal septum, Nasal and laryngeal polyps can easily be removed. All of these procedures can be performed as outpatient treatments. Due to the narrow zone of necrosis, postoperative pain is significantly reduced compared to other laser techniques like Nd:YAG and Diode lasers and conventional procedures.
Minimally invasive spine surgery (MISS) Foraminoplasty Discectomy PLDD
Orange and blue pedals can be used to easily switch for example between "Power Fragmentation" and "Popcoming". An additional standby function allows the user to activate/deactivate the laser as needed.
